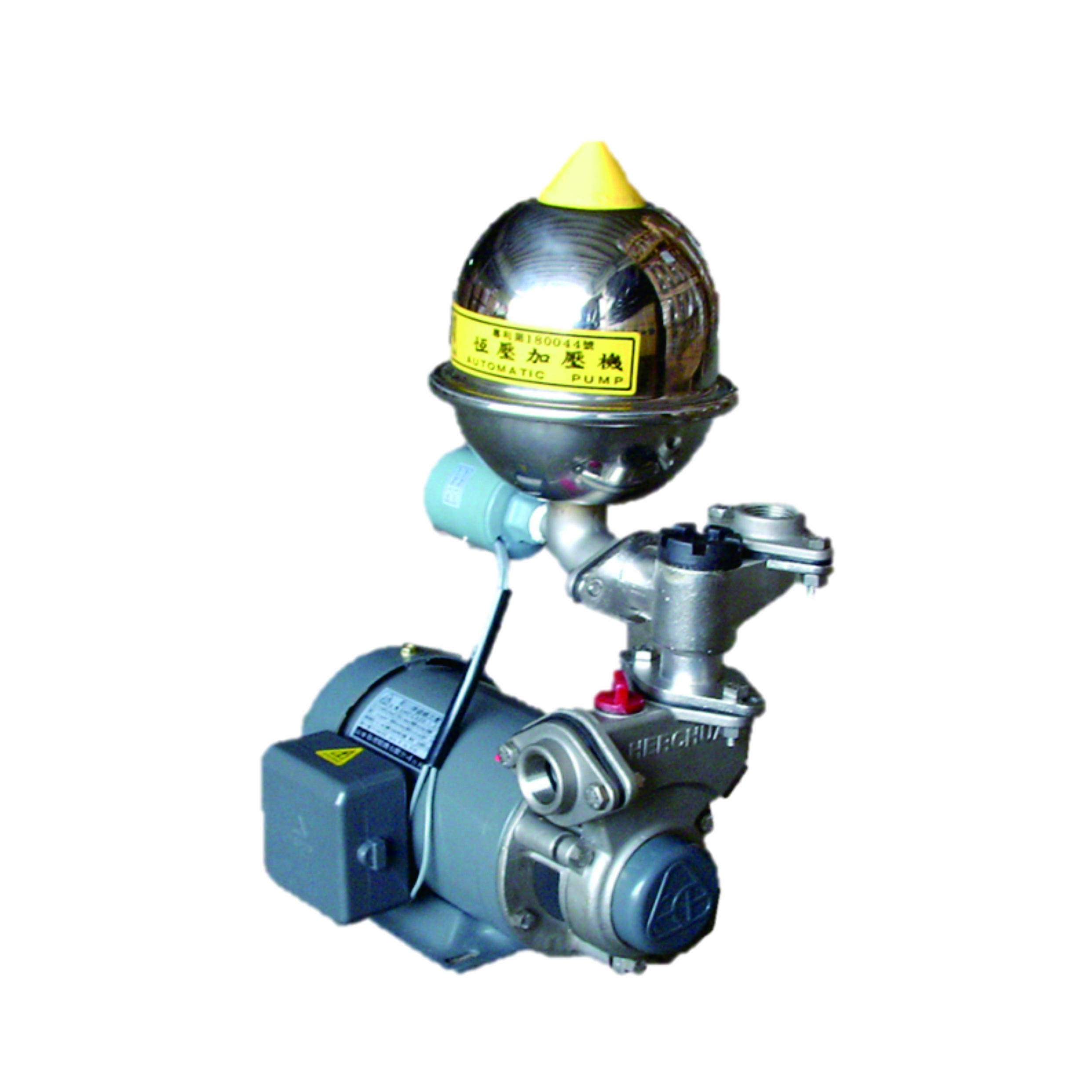

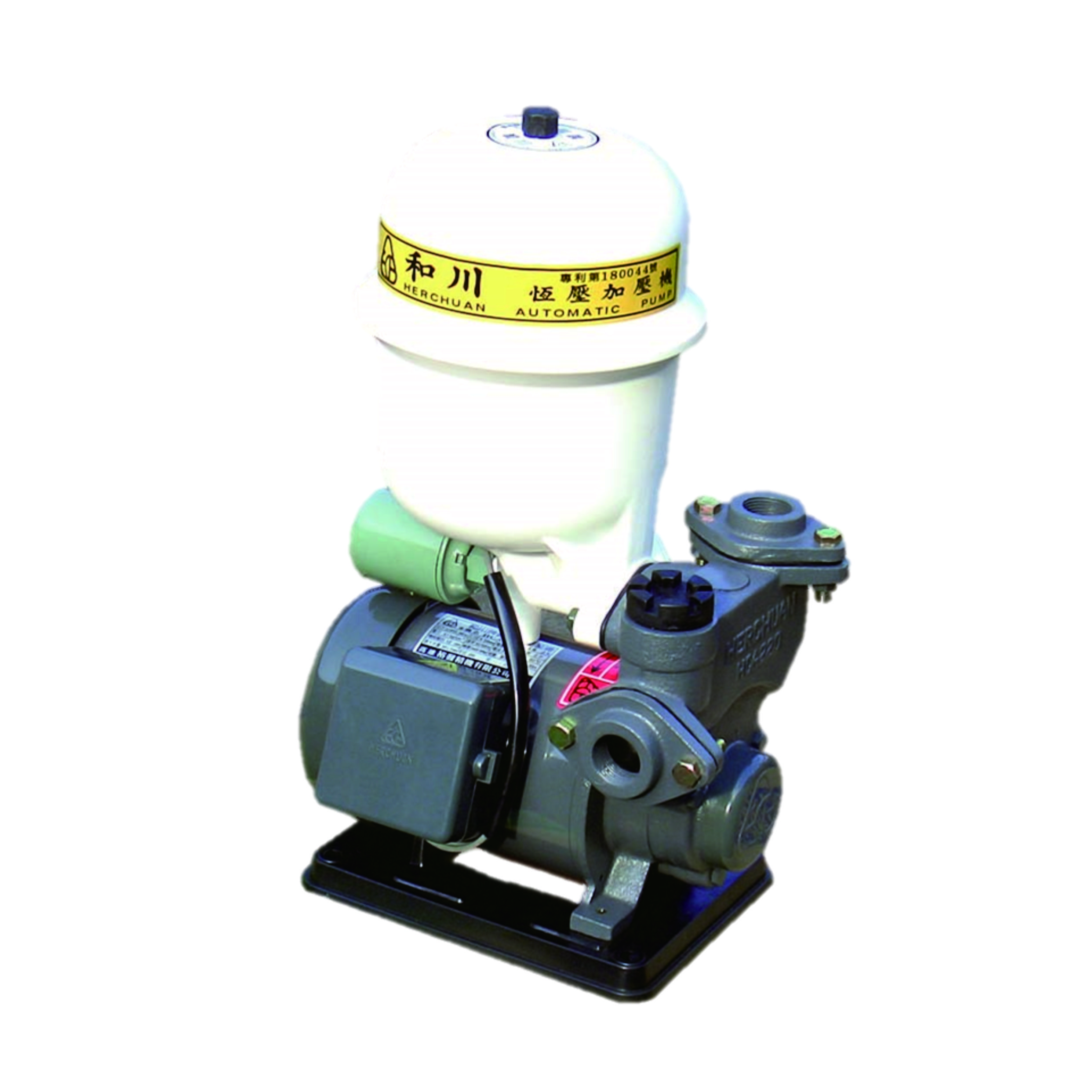

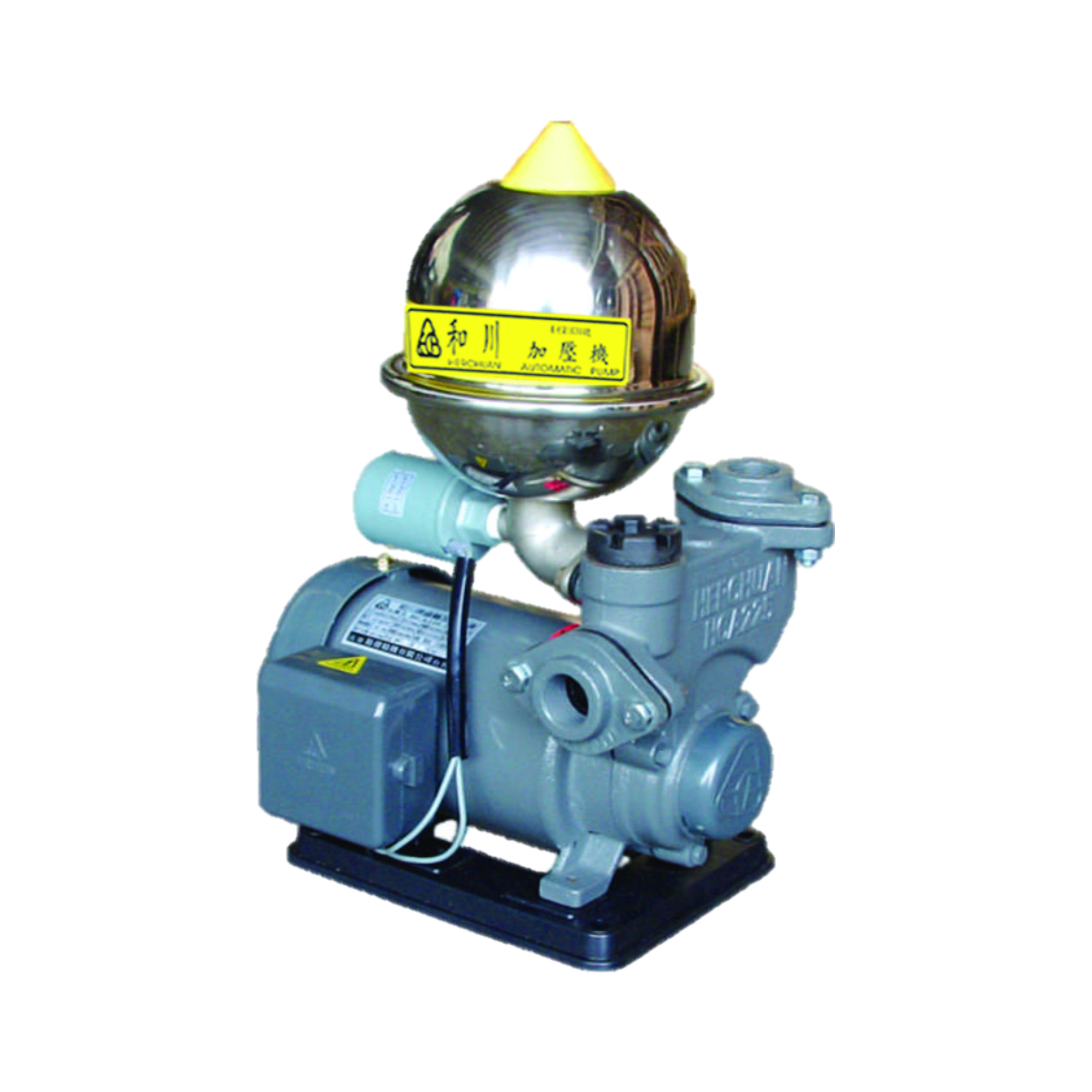

Bơm tăng áp tự động
| TYPE | POWER | BORE | VOLTAGE | MAX CAPACITY |
MAX HEAD |
WEIGHT | REMARK |
| HP (kw) | INCH(mm) | V | L/min | M | KG | ||
| HCA225-1.25 265 | 1/3 (0.25) | 1" (25) | 100V-120V & 200V-240V |
42 | 20 | 9.5 | |
| HCA225-1.37 265 | 1/2 (0.37) | 1" (25) | 37 | 30 | 12 | ||
| HCA225-1.75 265 | 1 (0.75) | 1" (25) | 54 | 41 | 19.5 | ||
| HCB225-1.25 265 | 1/3 (0.25) | 1" (25) | 42 | 20 | 9.5 | ||
| HCB225-1.37 265 | 1/2 (0.37) | 1" (25) | 37 | 30 | 12 | ||
| HCB225-1.75 265 | 1 (0.75) | 1" (25) | 54 | 41 | 19.5 | ||
| HCF225-1.25 265 | 1/3 (0.25) | 1" (25) | 48 | 25 | 11 | ||
| HCF225-1.37 265 | 1/2 (0.37) | 1" (25) | 38 | 30 | 11 |
| Unit:mm | ||||||||||
| TYPE | A | B | C | D | E | F | H | I | J | L |
| HCA225-1.25 265 | 115 | 196 | 77 | 140 | 100 | 185 | 407 | 66 | 41 | 214 |
| HCA225-1.37 265 | 115 | 196 | 77 | 140 | 100 | 210 | 408 | 64 | 41 | 266 |
| HCA225-1.75 265 | 137 | 216 | 86 | 144 | 110 | 223 | 466 | 68 | 43 | 191 |
| HCB225-1.25 265 | 115 | 196 | 77 | 140 | 100 | 185 | 399 | 66 | 41 | 214 |
| HCB225-1.37 265 | 115 | 196 | 77 | 140 | 100 | 210 | 400 | 65 | 41 | 266 |
| HCB225-1.75 265 | 137 | 216 | 86 | 144 | 110 | 223 | 466 | 68 | 43 | 291 |
| Unit:mm | ||||||||||||
| TYPE | A | B | C | D | E | F | H | I | J | L | G | K |
| HCF225-1.25 265 | 85 | 155 | 80 | 155 | 100 | 165 | 265 | 60 | 40 | 245 | 60 | 143 |
| HCF225-1.37 265 | 85 | 155 | 80 | 155 | 100 | 165 | 265 | 60 | 40 | 245 | 60 | 143 |
| A70 JA2-020 | Pressure switch made in Taiwan1.4~2.4kg/cm |
| A70 JA4-020 | Pressure switch made in Taiwan2.0~3.0kg/cm |
| A70 JA3-020 | Pressure switch made in Japan1.2~2.4kg/cm |
| A70 JA1-020 | Pressure switch made in Japan2.0~3.2kg/cm |
